Normal Cpacity (25C, 0.2C) (WH)	5632WH
Cell Equalizer Current (A)	1~5A Max
Cycle Life (+25C 0.2 80%DOD)	>3000 Cycles (Optional for >5000 Cycles with 5 Years Warranty)
Safety Standard	UN38.3, IEC62619, MSDS,CE
Case Design	Powerwall Design
Storage Duration	6 months at 25°C
Voltage Window (VDC)	22.4~29.2V
Max. Pulse Discharge Current (A)	200A 30Sec.
Folar Charge Voltage (VDC)	27.6V
Max. Continue Discharge Current (A)	150
IP Degree	IP20
Battery Type	LiFePO4
Normal Battery Voltage (VDC)	25.6V
Storage Temperature	0°C~30°C
Terminal	M8
Max. Continue Charge Current (A)	100

Protection	Over Charge Protection,over Discharge Protection, Over Current Protection, Short Circuit Protection, Over Temperature Protection

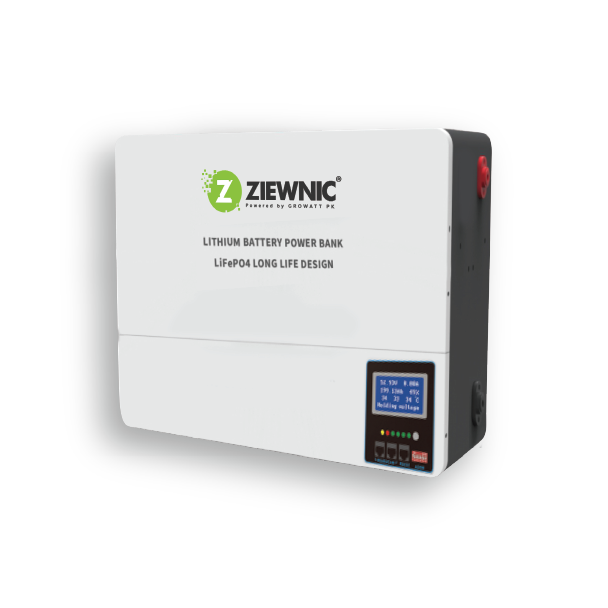

- Introducing 1st time in Pakistan, wall mounted lithium battery along with large LCD display
- 24V, 48V LiFePO4 pack, superior safety and reliability.
- Top brand cell such as CATL, BYD or GOTION.
- More than 3000 times charge/discharge cycle life.
- Long lifespan: 5 years warranty, 10+ years life design.
- With intelligent BMS system to optimize the performance.
- Built in intelligent BMS management system
- Built in 1.2A cell equalizer, can balance all cells in short time.
- Charge & discharge current is up to Maximum 200A and the cold start impulse current is 1000A.
- Excellent standby self-consumption as low as 4mA.
- High density, small size and weight.
- Wall mounted design, easy installation.
- All around protection and unattended operation.
- Optional for LCD display or communication (CAN/RS485/RS232).
- Application for o-grid/hybrid/solar system/UPS/Inverter/Storage power system
- Excellent standby self-consumption as low as 4MA. Automatically output cut o after 30 days no-charge & discharge to ensure security (also can cut o output by manual operation).
- Load capacity 24V220AH (5632WH). 48V120AH (6144WH) Battery bank.
- Over Charge Protection, Over Discharge Protection, Over Current Protection, Short Circuit Protection, Over Temperature Protection
- Commercially approved re certicate UN38.3 & other safety standard IEC62619, MSDS & CE
