SPECIFICATION

Normal Battery Voltage (VDC)	51.2V
Battery Type	LiFePO4
Normal Capacity (25C, 0.2C) (WH)	5120WH
Max. Continue Discharge Current (A)	100
Cell Equalizer Current (A)	1~5A Mox
Safety Standard	3 months at 25°C
Storage Duration	3 months at 25°C
Voltage Window (VDC)	44.8~58.4V
Max. Continue Charge Current (A)	100
Terminal	M8
Safety Standard	IP21
Storage Temperature	0°C~30°C
Cycle Life (+25C 0.2 80%DOD)	>6000 Cycles with 6 Years Warranty
Max. Pulse Discharge Current (A)	100A 30 Sec
Case Design	Powerwall Design
Solar Charge Voltage (VDC)	56.2V

PROTECTION

Protection	Over Charge Protection, over Discharge Protection, Over Current Protection, Short Circuit Protection, Over Temperature Protection

DIMENSION

Weight (NW Kg)	43.0Kg
Weight (GW Kg)	44.0Kg
LxWxH mm	L625W390H210

AMNIENT

Noise (dB)	<40dB (1 Meter)
Working Temperature	-20°C~+55°C
Sea Level (m)	-1500
Humidity	0~95% (no condensation)

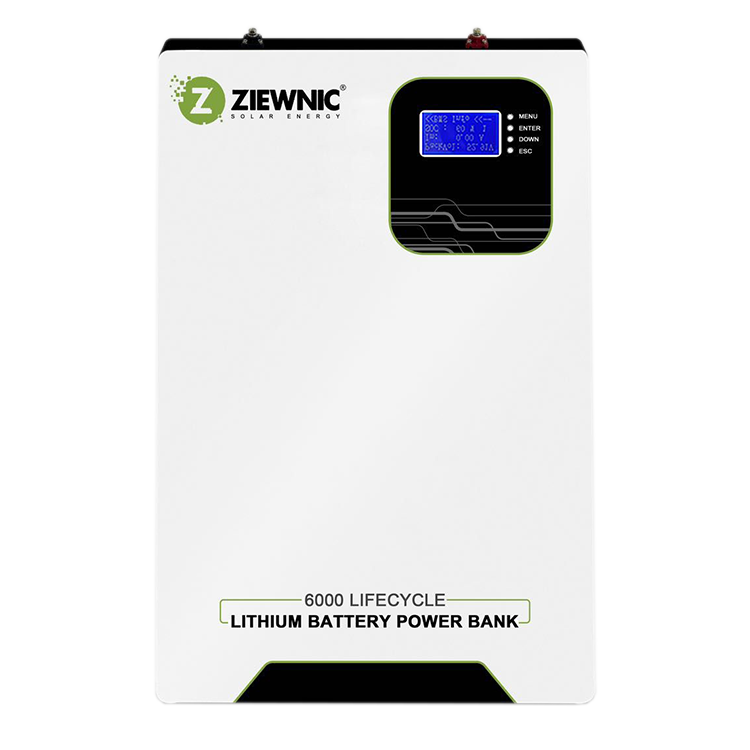

- Introducing 1st time in Pakistan, wall mounted lithium battery along with large LCD display
- 24V, 48V LiFePO4 pack, superior safety and reliability
- Top brand cell such as CATL, BYD or GOTION
- More than 6000 times charge/discharge cycle life
- Long lifespan: 6 years warranty, 12+ years life design
- With intelligent BMS system to optimize the performance
- Built-in intelligent BMS management system
- Built-in 1,2A cell equalizer, can balance all cells in short time
- Charge & discharge current is up to Maximum 100A and the cold start impulse current is 1000A
- Excellent standby self-consumption as low as 4mA
- High density, small size and weight
- Wall mounted design, easy installation
- All around protection and unattended operation
- Optional for LCD display or communication (CAN/RS485/RS232)
- Application for off-grid/hybrid/solar system/UPS/Inverter/Storage power system
- Excellent standby self-consumption as low as 4MA. Automatically output cut off after 30 days no-charge & discharge to ensure security (also can cut off output by manual operation)
- Load capacity 25.6V 100AH (2560WH). 51.2V 100AH (5120WH) Battery bank
- Over Charge Protection, Over Discharge Protection, Over Current Protection, Short Circuit Protection, Over Temperature Protection
- Commercially approved fire certificate UN38.3 & other safety standard IEC62619, MSDS & CE
- Compactible with Ziewnic, Inverex, Voltronic Power, Crown, Sako, Next Power, Solis, Growatt, Sofar, Solax, Deye, Srne, Pylon Tech, ChuangHuiYuan, Sumry, SoroTec, Megarevo, Goodwe, Must, Xindun (Supported all kinds of inverters at least 90%)
