Home Marvel Series ON GRID WITH ENERGY STORAGE HYBRID 5G EUROPEAN - PV 10000 (8.5 KW)
Product-Image

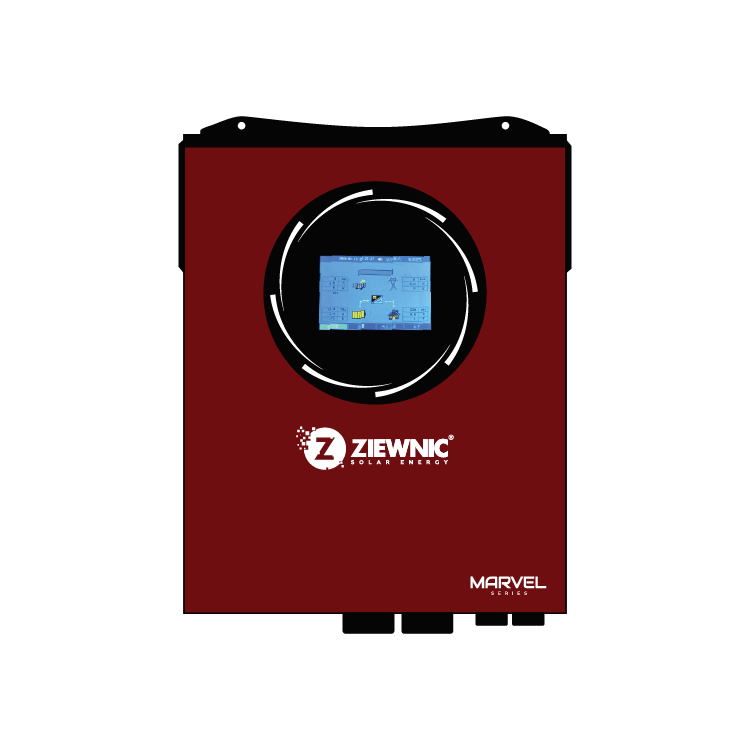

ON GRID WITH ENERGY STORAGE HYBRID 5G EUROPEAN - PV 10000 (8.5 KW)
Out of Stock
AED 292000

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guarantee Safe
Checkout

  • Specifications
  • Description

SPECIFICATION

Rated AC Output Power

8500W
Max. PV Input Power

10000W

PHYSICAL

Parrallel Function Optional

Yes Optional, Max 6Pcs
Communication IInterface

RS232, USB, Wi-Fi, Touch LCD
Product Gross Weight (kgs)

21.6
Product Dimension D X W X H (mm)

530x415x149
Packing Dimension D x W x H (mm)

690 x 550 x 242mm. 1PC/CTN
Product Net Weight (kgs)

19.4

ENVIRONMENT

Humidity

5% to 95% Relative Humidity (Non-Condensing)
Operartion Temperature

-

EFFICIENCY

Max. Conversion Efficiency (DC/AC)

98%

BATTERY MODE OUTPUT ( AC )

Nominal Output Volt

220Vac/230Vac/240Vac
Efficiency (DC to AC)

93%
Waveform

Pure Sine Wave

GRID OUTPUT ( AC )

Nominal Output Volt

220 Vac/230Vac/240Vac, Single Phase
Nominal Output Current

34.8A
Power Factor

>0.9
Output Voltage Range

184V-256Vac or 195-253V (Selectable)

PV INPUT ( DC )

MPPT Voltage Range

120-450VDC
Max. DC Voltage

450VADC
Nominal DC Volt/Max DC Voltage

360VDC/450VDC
Start-up Start-up Voltage/initial Feeding VoltageVoltage/initial Feeding Voltage

120VDC
No. of MPPT Tracker/Max. Input Current

2/18A (5000W * 2)
Np. of MPPT Tracker/Max Input Current

2/18A (5000W * 2)
MPPT Voltage Range

120-450VDC

GENERAL

-

-

HYBRID OPERATION

-

-

GRID TIE OPERATION

-

-

BATTERY MODE OUTPUT ( AC ) HYBRID

Efficiency (DC to AC)

93%
Waveform

Pure Sine Wave
Nominal Output Volt

220Vac/230Vac/240Vac

GRID OUTPUT ( AC ) HYBRID

Output Voltage Range

184V-265Vac or 195-253V (Selectable)
Nominal Output Volt

220Vac/230Vac/240Vac, Single Phase
Nominal Output Current

38.6A

PV INPUT (DC) HYBRID

MPPT Voltage Range

120-450VDC
Start-up Voltage Initial Feeding Voltage

120VDC
Nominal DC Volt/Max DC Voltage

360VDC/450VDC
No. of MPPT Tracker/Max. Input Current

2/18A (5000W * 2)

BATTERY & CHARGER

Max AC Charge Current

120A
Max Solar Charge Current

120A
Max Total Charge Current

120A
Nominal Battery Voltage

48VDC
Battery Type Supported

-

OFF-GRID OPERATION

-

-

AC INPUT (AC)

Acceptable Input Voltage Range

90-280Vac or 170-280Vac
Max. AC Input Current

63A
AC Start-up Voltage/Auto Restart Volt.

120Vac-140Vac/180Vac

GRID TIE MODE

Feed-in Voltage Range

184V-256Vac
Nominal Output Volt

220Vac/230Vac/240Vac, Single Phase
Max Efficiency DC/AC

>95%

AC INPUT (AC) HYBRID

Max. AC Input Current

63A
AC Start-up Volateg/Auto Restart Volt.

120Vac-140Vac/180Vac
Acceptable Input Voltage Range

90-280Vac or 170-280Vac
  • - Introducing 1st time in Pakistan, single phase Inverters support three phase when installed in parallel
  • - 100% Pure Sine wave Inverter
  • - Touch screen control module with various communications
  • - PV and utility power the load at the same time can be set
  • - Output power factor PF-1.0
  • - Energy generated record, load record history information and fault record
  • - Support Peak-Valley Charge
  • - Parallel operation up to 9 units
  • - Built-in two 10000W MPPTs, with wide input range: 120-450VDC
  • - Reserved communication parts (RS232 RS485,CAN)
  • - Upgraded 5th generation smart and intelligent solar inverter
  • - Zero transfer time
  • - Eciently Work with & with out battery
  • - Optional Wi-Fi interface with Android & IOS
  • - Battery Equalization/Compatible with Li-ion, LifePo4 and etc )
  • - Conformal Coating to Prevent from Dust and Humidity
  • - Easy Replacement of fans
  • - Overload and Short Circuit Protection
  • - European Design and Engineered in Taiwan
  • - Built in zero export, 100% reverse grid feeding
