Home Marvel Series OFF Grid VM IV - PV7000 (6.0 KW)
Product-Image

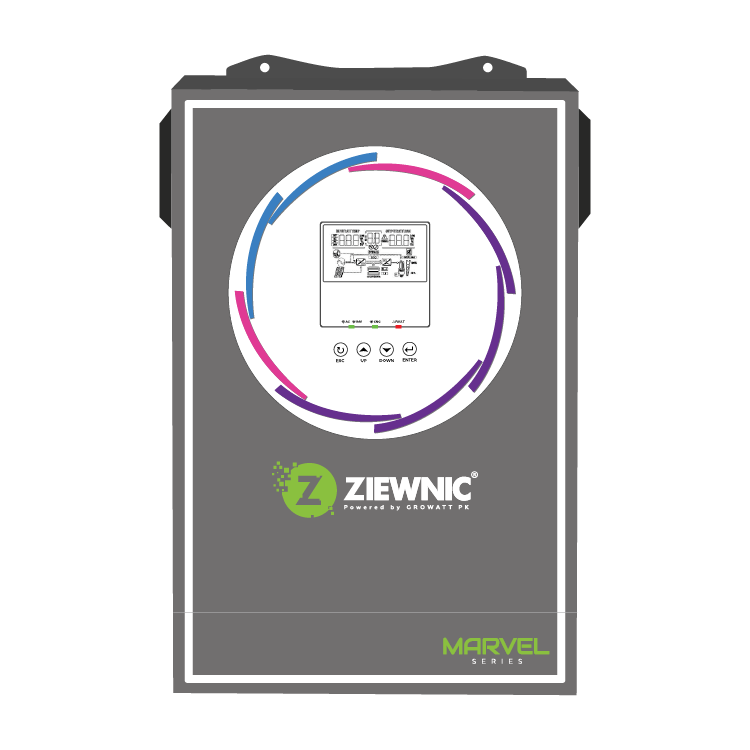

OFF Grid VM IV - PV7000 (6.0 KW)
Out of Stock
AED 0

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guarantee Safe
Checkout

  • Specifications
  • Description

SPECIFICATION

Rated Power

6000VA / 6000W

PHYSICAL

Communication Interface

Remove LCD /RS323/GPRS/Wi-Fi
Net Weight (kgs)

12.3
Dimension.D*W*H(mm)

543 x 394 x 214 mm

AC OUTPUT

AC Voltage Regulation

230 VAC + 5%
Efficiency (Peak) Battery to Inv

94%
Transfer Time

10 ms (For Personal Computers); 20 ms (For Home Appliances)
Surge Power

12000 VA
Efficiency (Peak) PV to INV

97%

BATTERY AND AC CHARGER

Maximum AC Charge Current

60 A
Battery Voltage

48 VDC
Overcharge Protection

63 VDC
Floating Charge Voltage

54 VDC

SOLAR CHARGER

Maximum Efficieny

98%
Maximum PV Array Open Circuit Voltage

500 VDC
Maximum Charge Current

TRUE (MPPT) 120A
MPPT Range @ Operating Voltage

120~450 VDC
Maximum PV Array Power

7000W

OPERATING ENVIRONMNET

Humidity

5% to 95% Relative Humidity (Non~Condensing)
Operating Temperature

0°C~55°C
Storage Temperature

-15°C~60°C

AC Input

Selectable Voltage Range

90~280VAC (For Home Appliances)
Voltage

170~280 VAC (For Personal Computer)
Frequency Range

50 HZ / 60 HZ (Auto Sensing)
AC Input

230 VAC
  • - 100% Pure sine wave inverter
  • - Inverter with battery equalization
  • - 120A MPPT based solar charger inverter
  • - Upgraded generation smart and intelligent solar inverter
  • - Output power factor 1
  • - Adaptable to main voltage / Generator power
  • - Compatible with SNMP box Wi-Fi box
  • - New smart LCD display
  • - Conformal coating to prevent from dust and humidity
  • - Configurable AC/Solar input priority via LCD setting
  • - Overload and short circuit protection
  • - Work with battery and without battery
  • - Wi-Fi Mobile monitoring device (Optional)
  • - Design and Engineered in Taiwan
