Home 3 Phase ON Grid Series TP20KTL 3 Phase Inverter
Product-Image

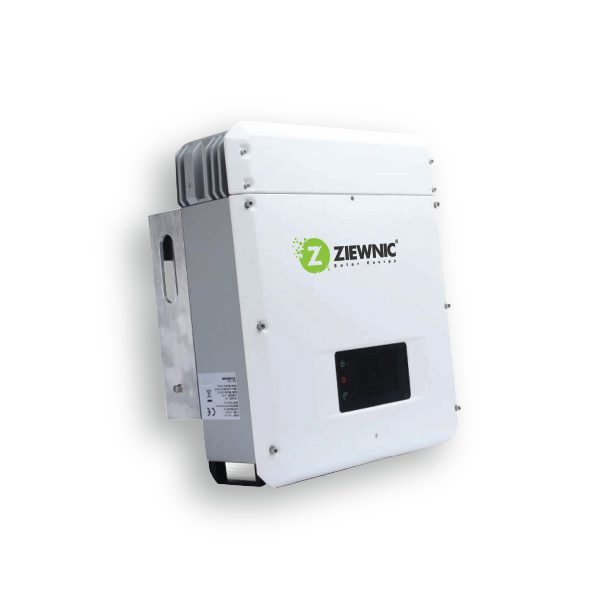

TP20KTL 3 Phase Inverter
Out of Stock
AED 0

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guarantee Safe
Checkout

  • Specifications
  • Description

OUTPUT (AC SIDE)

AC Nominal Power (W)

20000
Max. AC Apparent Power (VA)

22000
Max. Output Current (A)

30
AC Output Range

45 / 55 Hz; 280~490VAC (Adj)
Nominal AC Output

50 / 60 Hz; 400VAC
Grid Type

3 W / N / PE
Power Factor

0.8 Leading... 0.8 Lagging
Harmonics

<1.5%

EFFICIENCY

Max. Efficiency

98.6 %
Euro. Efficiency

98.1 %
MPPT Efficiency

99.9%

GENERAL

Humidity

0-95% Non Condensation
Degree of Protection

IP65
Communication

Standard Wi-Fi / Rs485 (Optional)
Display

LCD
Operating Temperature Range

-25 ~ +60
Warranty

5 Year (Terms & Condition Apply)
Cooling Concept

Natural Convection
Topology

Transformerless

Max DC Power (W)

Max. Input Current / Per String (A)

250-850
Max. DC Voltage (VDC)

30000
String per MPPT Tracker

2
Min. Working Voltage (VDC)

1000
MPPT Voltage Range (VDC)

250
Numbers of MPPT Tracker

26 / 26

SAFETY & PROTECTION

Insulation Impedance Detection

Yes
Residual Current Protection

Yes
Leakage Current Protection

Yes
DC Reverse Polarity Protection

Yes
DC Breaker

Yes
DC /AC SPD

Yes
  • - Quick and easy to install with basic tools
  • - Sufficient installation accessories and various optional accessories
  • - Quick setup Wi-Fi to App
  • - International quality standard
  • - IP65 Waterproof for outdoor use
  • - Transformer less with three level topology
  • - Dual MPPT for efficient tracking
  • - Particular design for any where
  • - Smart string monitoring
