Home Atom Series Hybrid Inverter Dual MPPT 9KW (PV 11000)
Product-Image

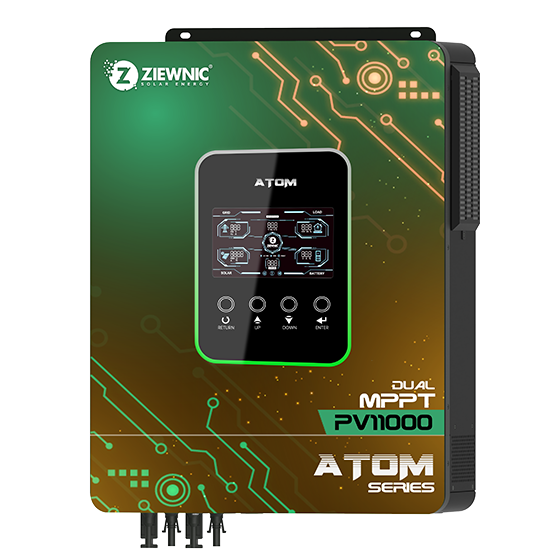

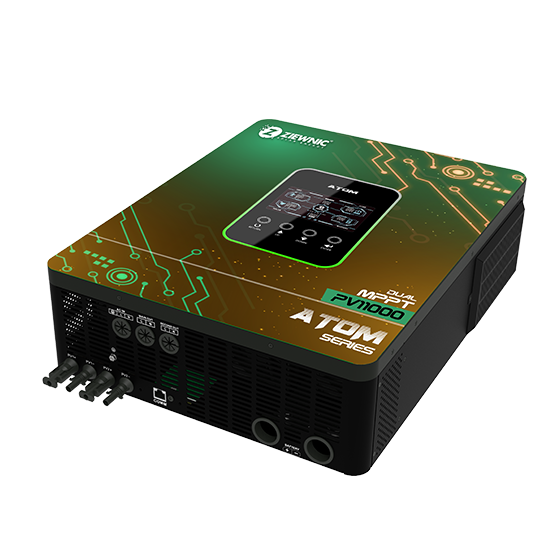

Hybrid Inverter Dual MPPT 9KW (PV 11000)
AED 247000
Quantity
- +
Add to cart

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guarantee Safe
Checkout

  • Specifications
  • Description

SPECIFICATION

Phase

1-Phase
Maximum PV Input Power

11000 W
Rated Output Power

9000 W
Maximum Solar Charging Current

160A

PHYSICAL

Dimension,D x W x H(mm)

500 x 390 x 136mm
Net Weight(kgs)

14.5

ENVIRONMENT

Operating Temperature

-10~50°C

EFFICIENCY

Maximum Conversion Efficiency (Solar to AC)

98%

AC Input

Acceptable Input Voltage Range

90-280 VAC or 170-280 VAC
Maximum AC Input Current

40A
Nominal operating frequency

50/60Hz
Surge power

18000W

INTERFACE

Communication

RS232/Wi-Fi/GPRS

BATTERY MODE OUTPUT ( AC )

Nominal Output Voltage

220/230/240 VAC
Output Waveform

Pure Sine Wave
Efficiency(DC to AC)

94%

GRID OUTPUT ( AC )

Nominal Output Voltage

220/230/240 VAC
Nominal Output Voltage

195.5-253 VAC
Nominal Output Current

40A
Power Factor

>0.99
Feed-in Grid Frequency Range

49~51±Hz

PV INPUT ( DC )

Nominal DC Voltage/Maximum DC Voltage

360 VDC/500 VDC
Maximum DC Open Circuit Voltage

500 VDC
Maximum DC Voltage

90~450 VDC
Number of MPPT Trackers/Maximum Input Current

18A+18A

BATTERY & CHARGER

Nominal DC Voltage

48 VDC
Maximum Charging Current (Solar to AC)

160A
Maximum AC Charging Current

160A

TWO LOAD OUTPUT POWER(V2.0)

Full Load

9000 W
Maximum Main Load

9000 W
Maximum Second Load(battery mode)

1640W~5740W
Main Load Cut Off Voltage

52 VDC
Main Load Return Voltage

54 VDC
AC Start-up Voltage/Auto Restart Voltage

120-140 VAC/180 VAC
  • - INTRODUCING 1ST TIME IN PAKISTAN REAL 7TH GEN INVERTER ST SINGAPORE BASED HIGH EFFICIENCY IGBT/MOSFET
  • - FAST PERFORMANCE CHIP. INSTANT POWER. ZERO DELAYS.
  • - ATOM SERIES INVERTER SUPPORTS MULTIPLE OPERATION MODES
  • - 100% PURE SINE WAVE SOLAR INVERTER
  • - OUTPUT POWER FACTOR 1.0
  • - BUILT-IN WI-FI AVAILABLE FOR IOS/ANDROID DEVICES
  • - INVERTER RUNNING WITH BATTERY & WITHOUT BATTERY
  • - 1 BUTTON RESTORE SETTING OPTIONS IN PROGRAM
  • - BATTERY EQUALIZATIONS
  • - RECORD FAULT CODE FEATURE IN PROGRAM
  • - ADAPTABLE TO MAIN VOLTAGE / GENERATOR POWER
  • - CONFORMAL COATING TO PREVENT FROM DUST AND HUMIDITY
  • - BUILT-IN AUTOMATIC ELECTRONICS BREAKER FOR OVERLOAD & SHORT CIRCUIT PROTECTION
  • - NEW COLOR SCREEN LCD FUNCTION DESIGN WITH TOUCH BUTTONS
  • - BUILT-IN ANTI DUST FOR HARSH ENVIRONMENT
  • - COMPATIBLE WITH ALL KINDS OF LITHIUM BATTERIES
  • - ADJUSTABLE PARAMETERS
  • - AUTOMATIC LITHIUM BATTERY ACTIVATION
  • - SURGE CAPACITY 2* RATED POWER FOR 5 SECONDS
  • - BATTERY CHARGING CURRENT UPTO 160A (AC+SOLAR)
  • - MPPT BASED SOLAR CHARGE CONTROLLER (160A)
  • - HIGH PV INPUT VOLTAGE RANGE (90~450 VDC)
  • - SMART DUAL OUTPUT FOR NORMAL AND HEAVY LOAD
  • - PV INPUT CURRENT 18X18A
  • - BUILT-IN ZERO EXPORT
