Home Lobo Series 11 KW (PV12000)
Product-Image

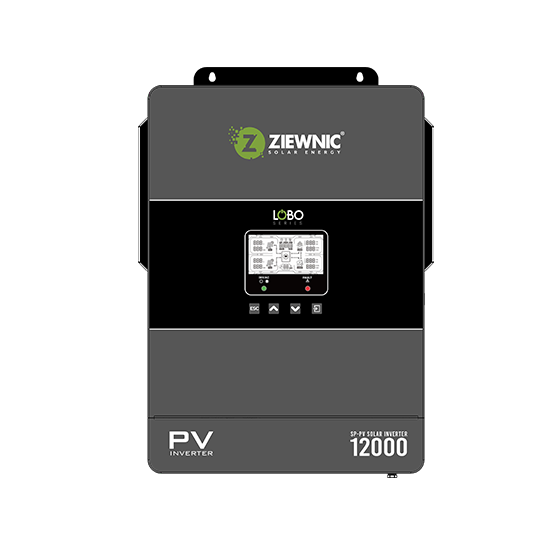

11 KW (PV12000)
Out of Stock
AED 0

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guarantee Safe
Checkout

  • Specifications
  • Description

SPECIFICATION

Phase

Single-Phase
Rated Output Power

11KVA

PHYSICAL

Dimension H x W x D (mm)

315.5 x 225 x 103
Cartoon Dimension H x W x D (mm)

-
Net Weight (kgs)

3.5
Gross Weight (kgs)

-
IP Protection

IP40

ENVIRONMENT

Humidity

<95% RH(Non-Condensing)
Operating Temperature

-10°C to 55°C

PROTECTION

Full Protection

Overload, Short Circuit, Over-temperature, Over-current, Anti-Islanding Protection

INTERFACE

Communication Port

RS-232

PV MODE

Number of MPPT

2
PV Array Maximum Open Circuit Voltage

500VDC
PV Input Voltage Range

60-500VDC
Maximum PV Input Current

18A+18A
Start Up Voltage

120VDC
Nominal DC Voltage

360VDC
MPPT Trackers Efficiency

>99.5%

LINE MODE

Voltage

230VAV
Input Voltage Range

90-280VAC
Input Frequency Range

40-65Hz
Maximum Input Current

45A
Input Power Factor

>0.99
Input THDi

<5%
  • - FIRST TIME IN PAKISTAN PV INVERTER SUPPORT BIGGEST SIZE SOLAR PANELS 1000W
  • - PURE SINE WAVE SOLAR INVERTER
  • - CAN WORK IN ON / OFF GRID MODE
  • - BUILD IN HIGH EFFICIENCY MPPT SOLAR CONTROLLER
  • - WIDE PV INPUT VOLTAGE : 60 - 500VDC
  • - DUAL MPPT SOLAR CONTROLLER FOR DIFFERENT GROUPS SOLAR PANEL
  • - LCD DISPLAY ALL INFORMATION ON ONE INTERFACE
  • - BUILD IN FEEDBACK DETECTION CURRENT SENSOR
  • - COMMUNICATION INTERFACE FOR WIFI OPTIONAL
  • - FAST ISLANDING RESPONSE ENSURES SECURITY
  • - EASY TO REPLACE DUST SCREEN DESIGN
  • - BATTERY INDEPENDENT DESIGN, NO NEED BATTERY
  • - SUPPORT TOPCON / HJT / HIMO10 PANELS
  • - GRID FEEDING BACK TO GRID
  • - MADE IN TAIWAN
